VIM-JM611A1C 640 Uncooled Infrared Camera
A 640×512 VOx uncooled LWIR camera core with CVBS output for industrial, observation, security and drone applications.
Overview
Camera specifications
| Detector | |
|---|---|
| Sensor type | Vanadium Oxide (VOx) |
| Resolution | 640 × 512 |
| Pixel size | 12 µm |
| Response band | 8 – 14 µm |
| NETD | ≤ 40 mK |
| Frame rate | 50 Hz |
| Image Processing | |
|---|---|
| Defective pixel correction | Compatible |
| Image detail enhancement | Compatible |
| Image denoising | Compatible |
| AGC mode | Histogram |
| Boot time | ≤ 5 s |
| Pseudo color mode | White hot |
| Image calibration | Automatic (with shutter) |
| Power & Interface | |
|---|---|
| Power supply | 3.9 – 18 V |
| Power consumption | ≤ 0.5 W (default) |
| Video interface | CVBS (default) |
| Control interface | Contact for details |
| Output resolution | 720 × 576 (CVBS) |
| Environmental & Structural | |
|---|---|
| Operating temperature | -40°C to +60°C |
| Storage temperature | -50°C to +70°C |
| Storage humidity | < 90% RH |
| Vibration / shock | Sinusoidal vibration 10 m/s² 3-axis; half sine shock 15 g / 11 ms, 3 axes and 6 directions. |
| Weight | ≤ 63 g |
| Dimensions (excluding lens) | 27 mm × 32 mm × 47.6 mm |
| Certifications | Contact for details |

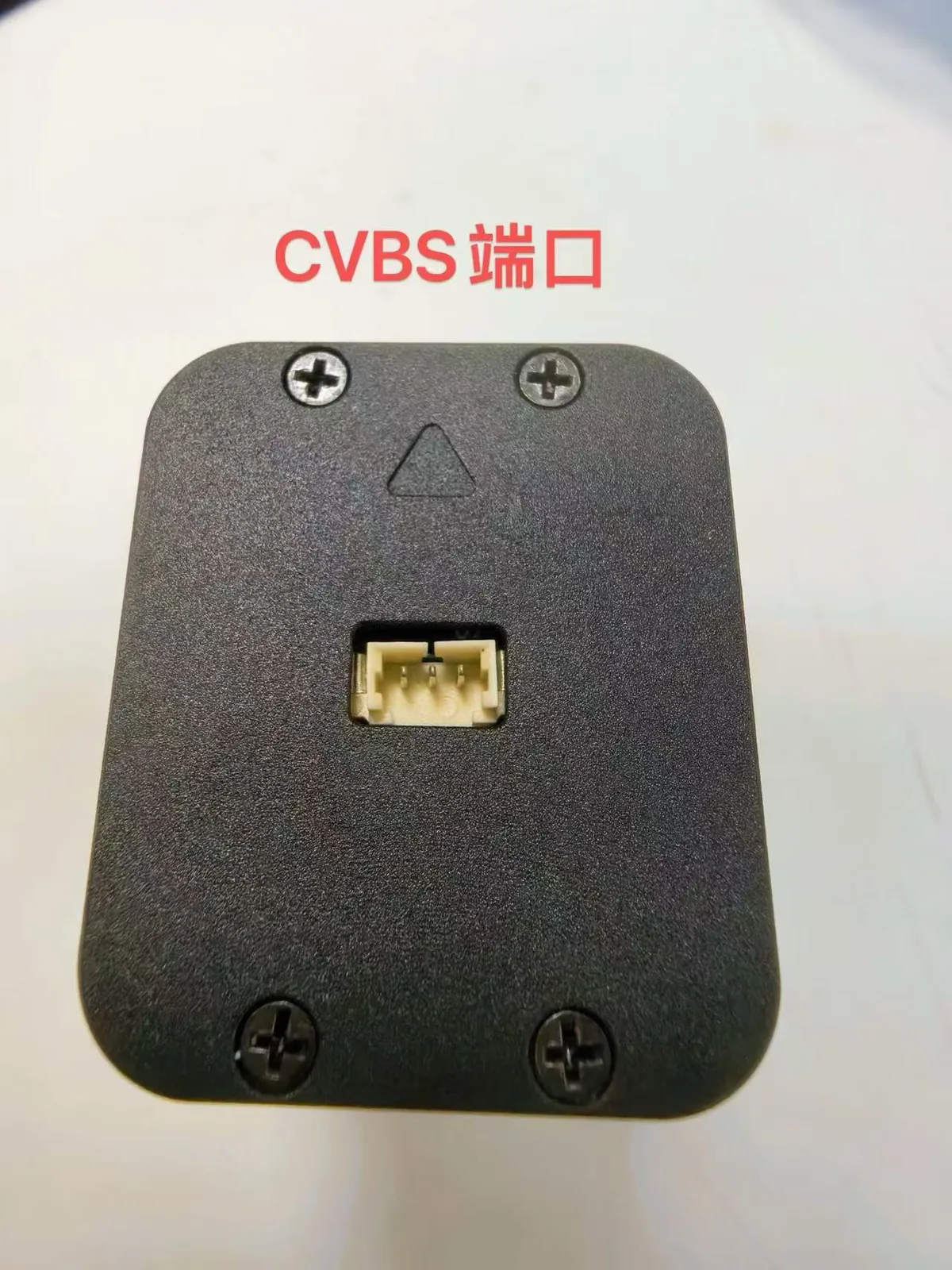

Connections
Pin description
| NO | Name | Type | Description |
|---|---|---|---|
| 1 | VIN | POWER | Positive pole of power supply, range: 3.9 – 18 V |
| 2 | GND | POWER | Negative pole of power supply |
| 3 | CVBS | OUT | Analog video output |
Reference: See the datasheet for the pin diagram and full dimension drawing.
Gallery

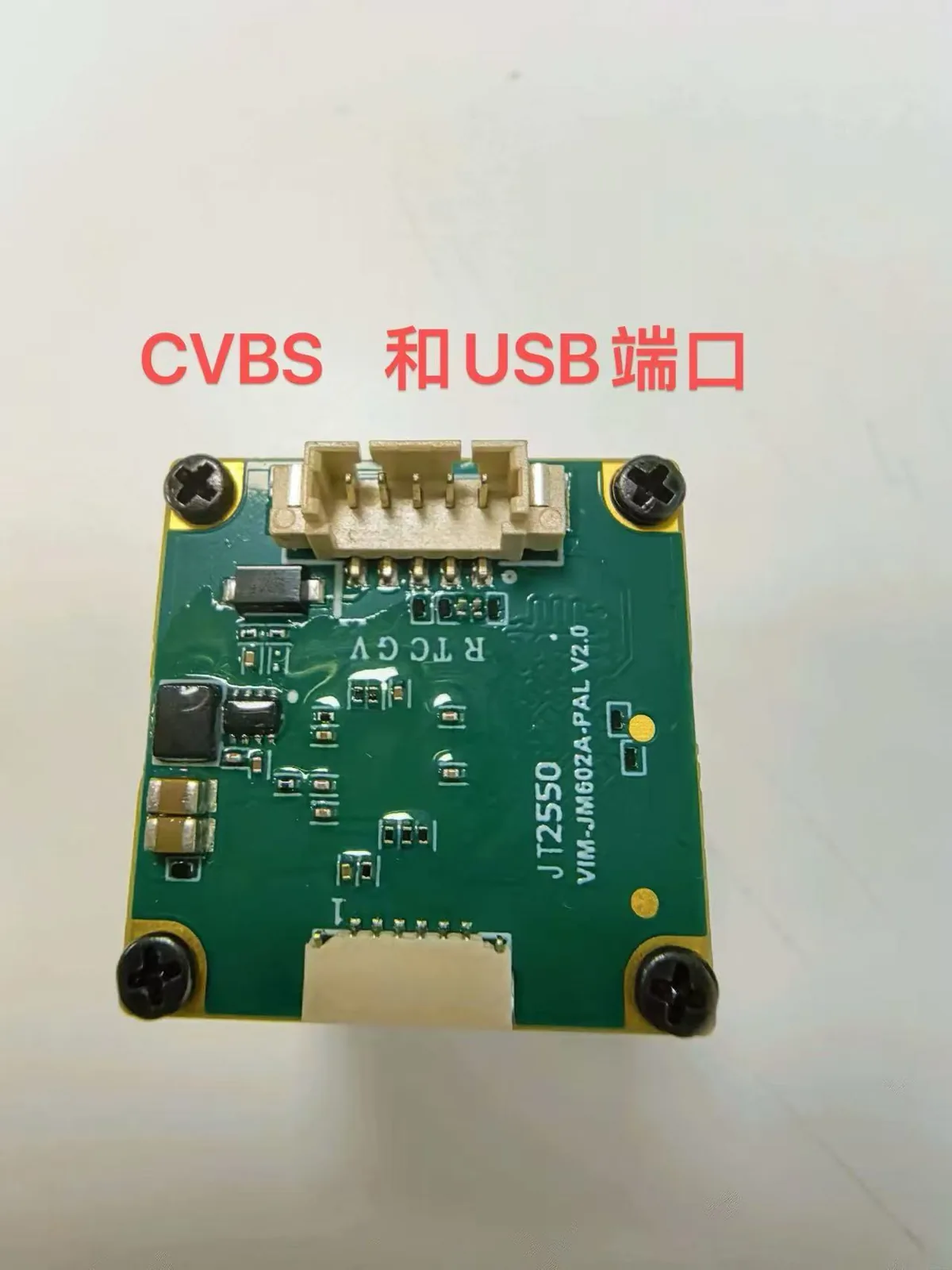

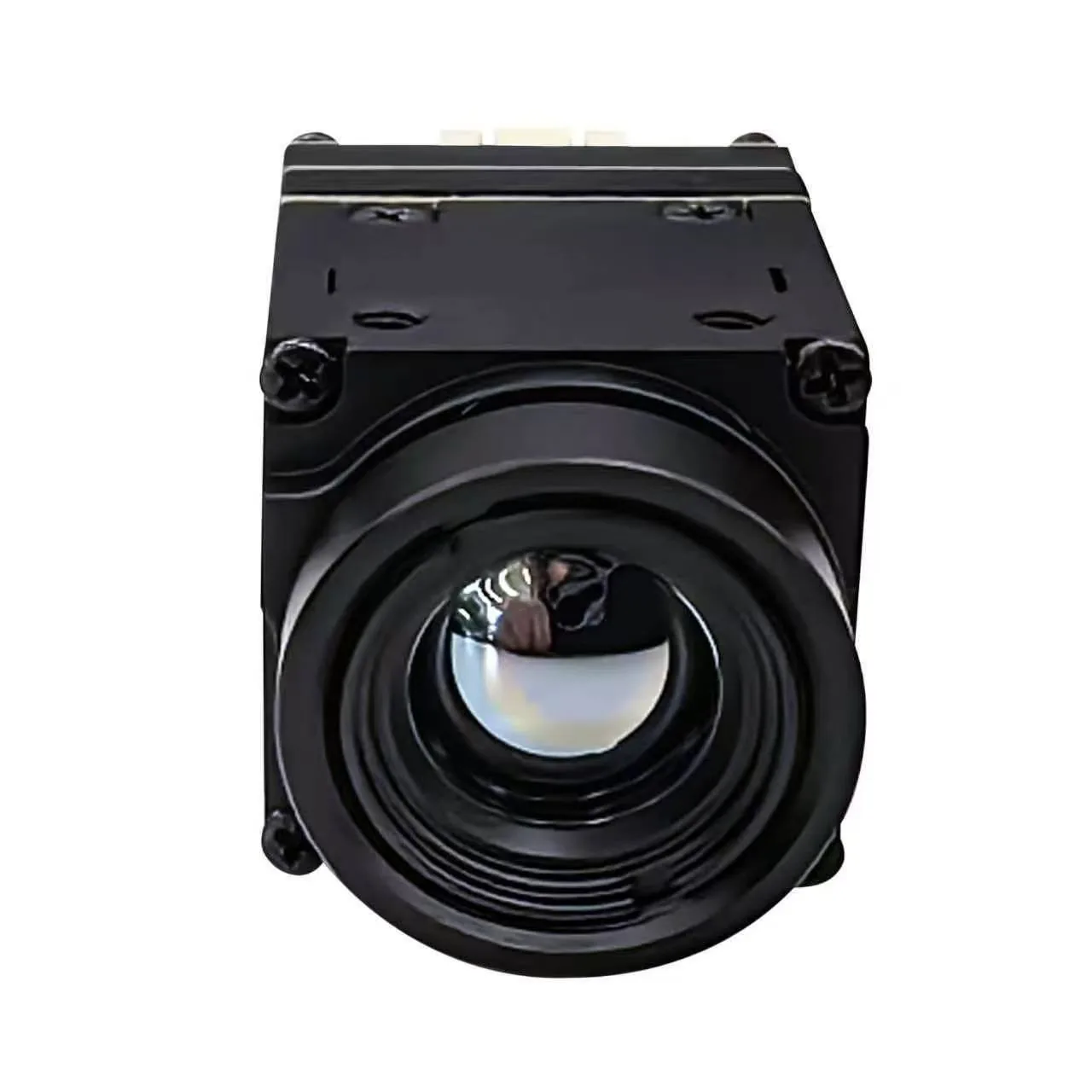

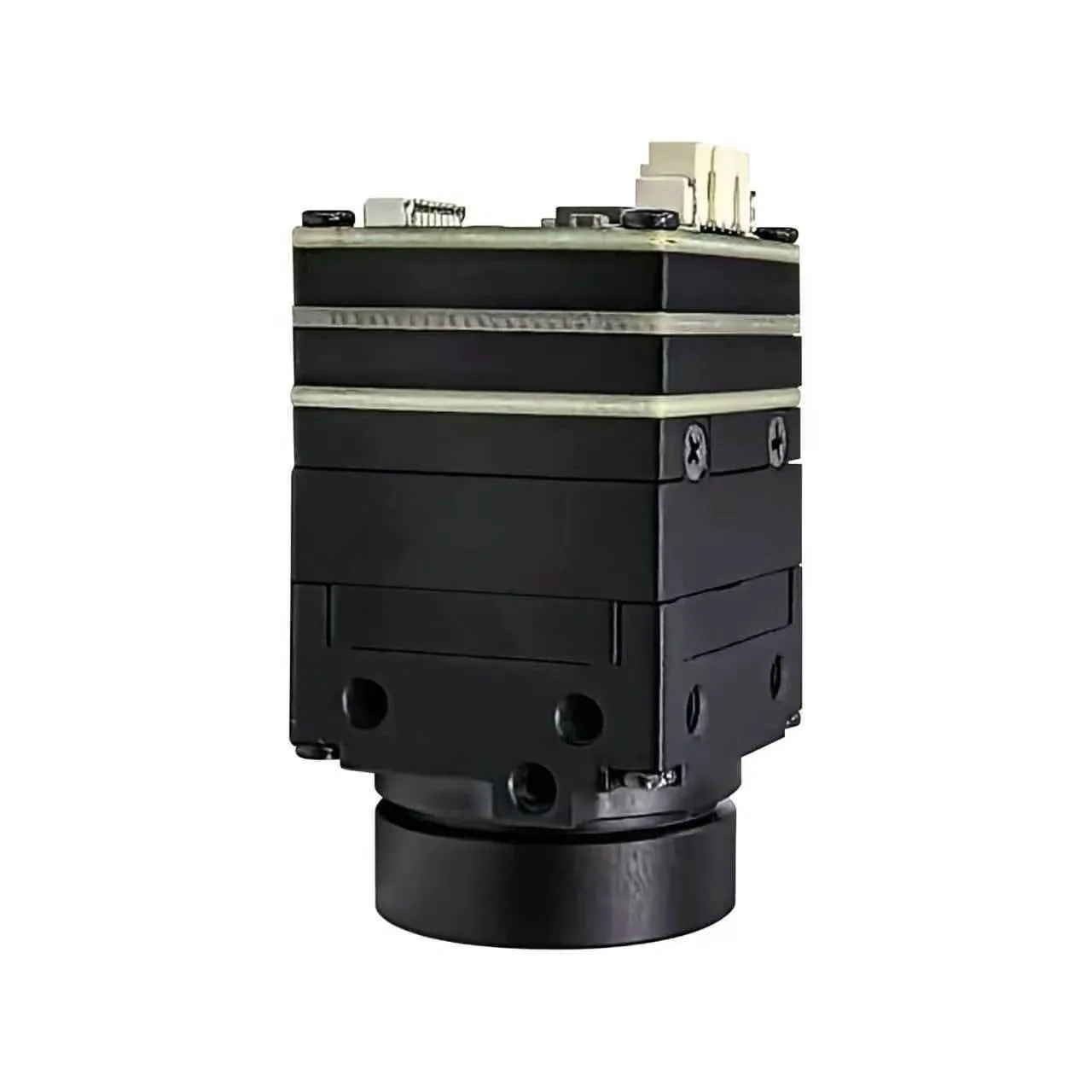

Product views and thermal imaging
Product views and thermal imaging examples for reference.
