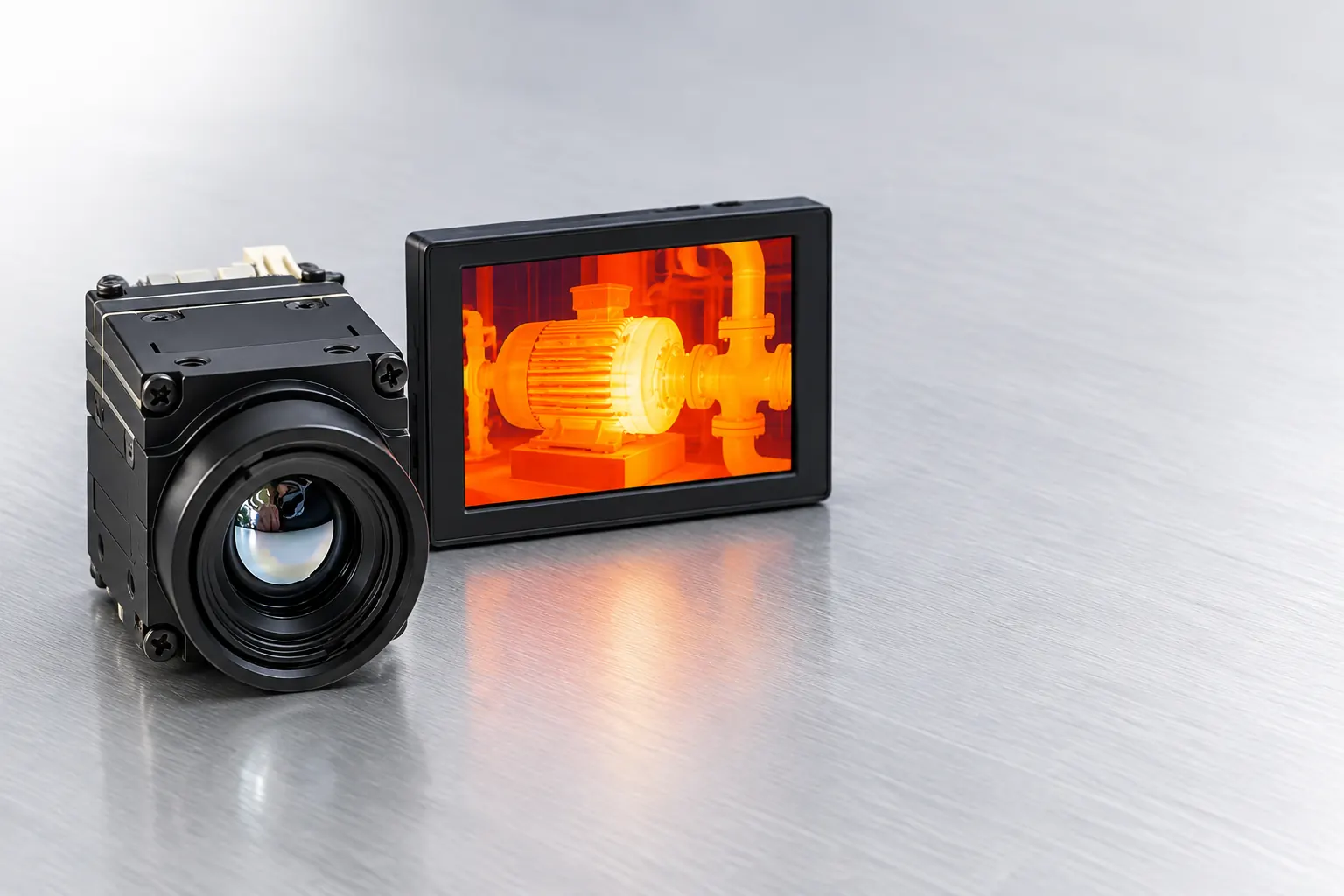

640×512 Uncooled Infrared Camera Module
Compact, lightweight LWIR camera cores for thermal imaging systems. Vanadium oxide detector, 12µm pixel, 50 Hz, CVBS output. Built for OEMs, integrators and product developers.
640×512 · 12µm · 50 Hz
Products & technology news
Recent additions and engineering notes from the XWD Tech product line.
384×288 core now available
Compact VOx option for entry-level thermal products. Contact us for current specifications.
50 Hz shutter calibration
Integrated shutter and AGC support stable imaging at 50 Hz frame rates.
USB / UART interface option
The JM609A1C adds USB 2.0 video and UART control for easier system integration.
Three camera cores for different integration needs
640×512 and 384×288 VOx cores for flexible integration.
VIM-JM609A1C
640×512 VOx core with CVBS / USB 2.0 output and UART control, ≤30 g.
VIM 384×288
Custom pixel and interface options — contact us for details.
Thermal imaging made easy to integrate
LWIR 8–14 µm
Vanadium oxide (VOx) detector with 12µm pixel pitch and 640×512 resolution.
Low power, small size
Compact modules suit battery-powered and handheld thermal devices.
Flexible output
CVBS analog video, with the 609A1C also offering USB 2.0 and UART control.
Fast boot
Ready in seconds with automatic shutter calibration and histogram AGC.
Rugged operation
Operates from -40°C to +60°C and is rated for vibration and shock.
OEM / ODM friendly
Flexible matching with different infrared lenses and custom integration support.
Where our camera cores are used

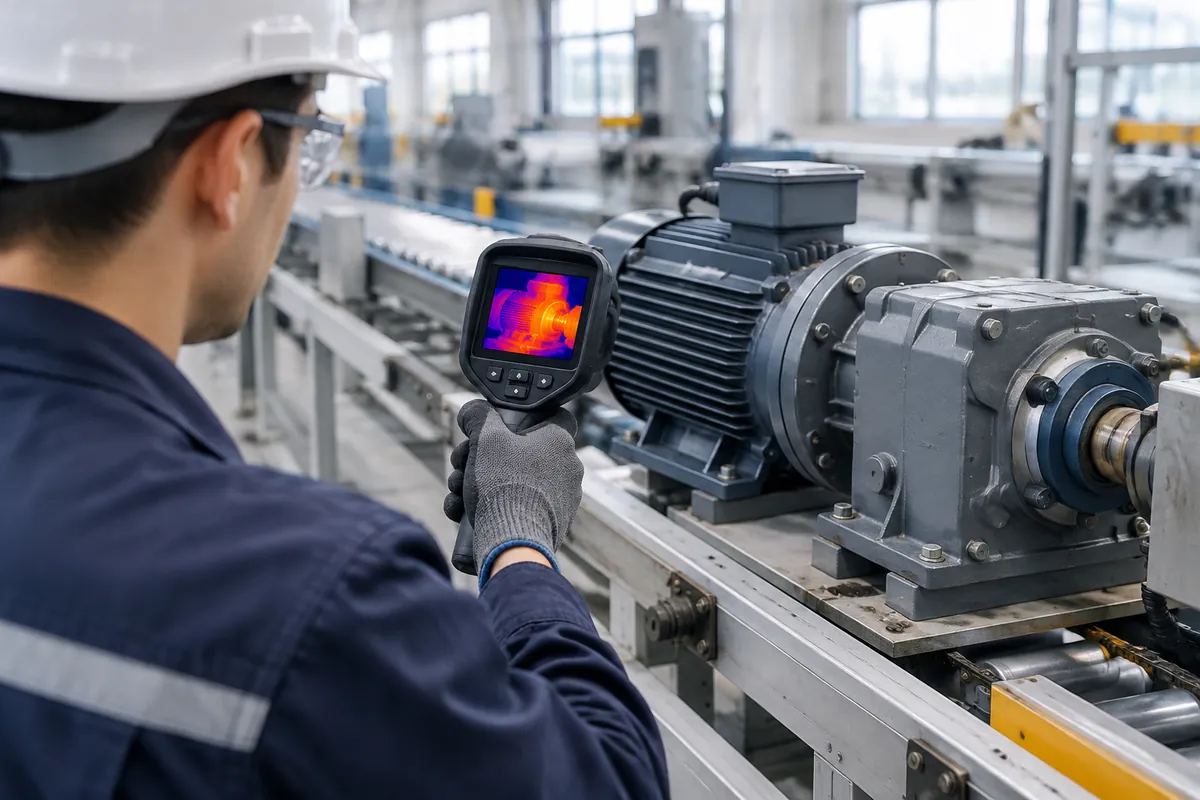

Industrial & Automation
Thermal inspection, process monitoring and machine vision acquisition.

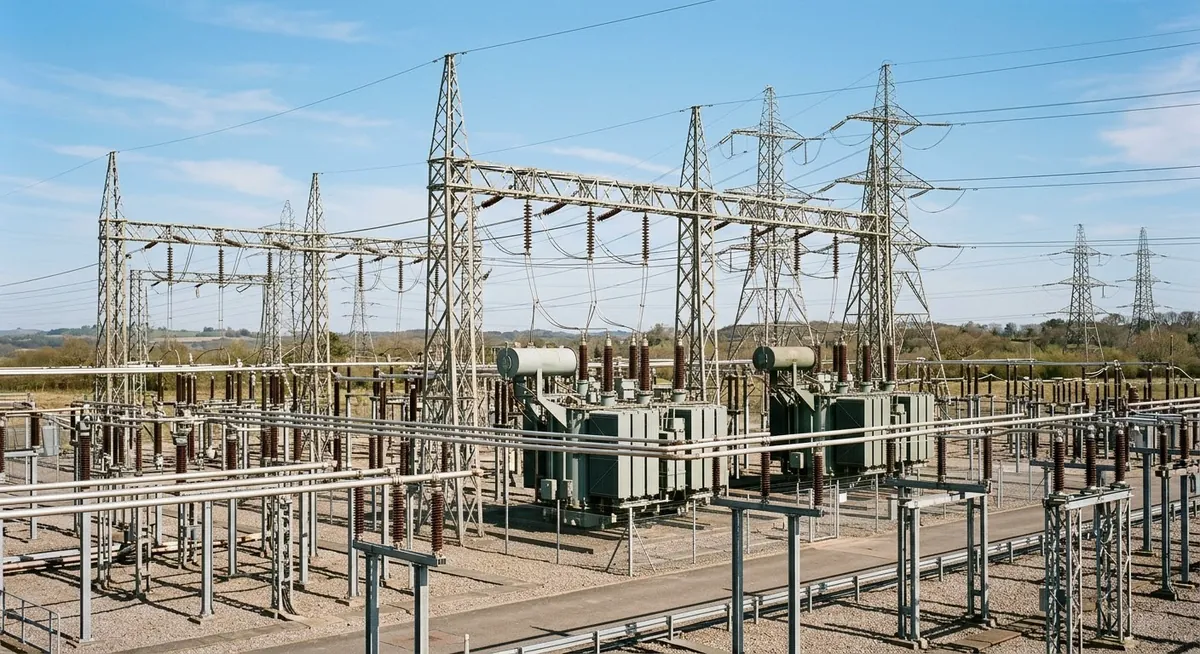

Electrical & Power
Non-contact inspection of panels, transformers and power infrastructure.

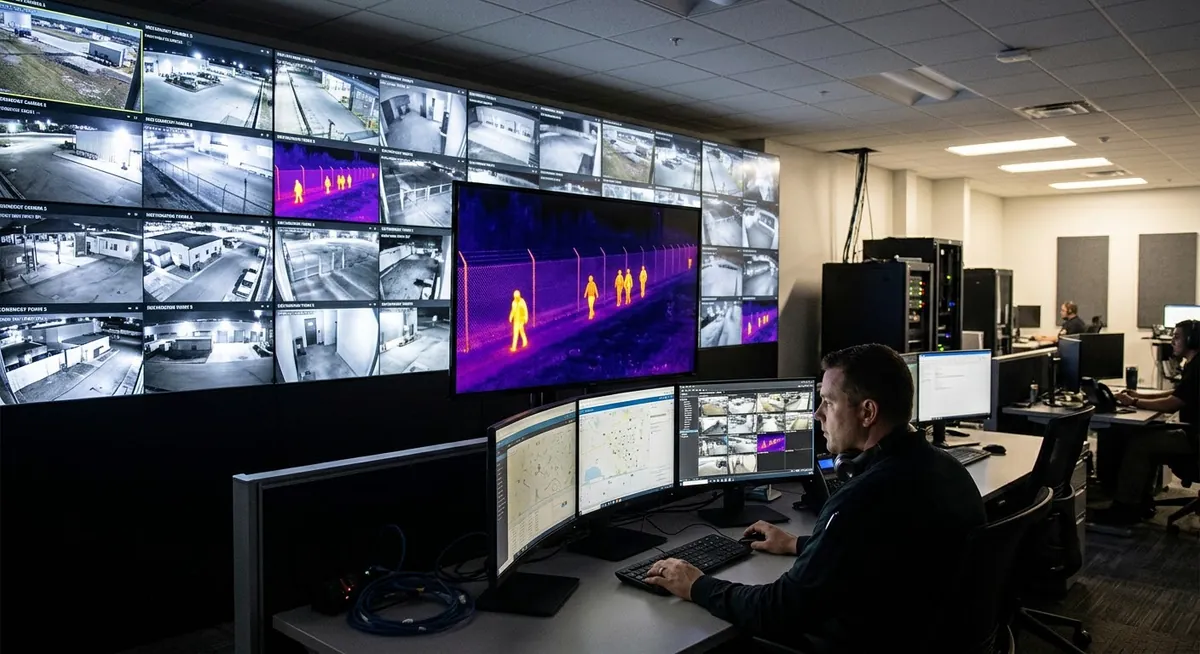

Observation & Security
Passive perimeter surveillance and handheld observation equipment.

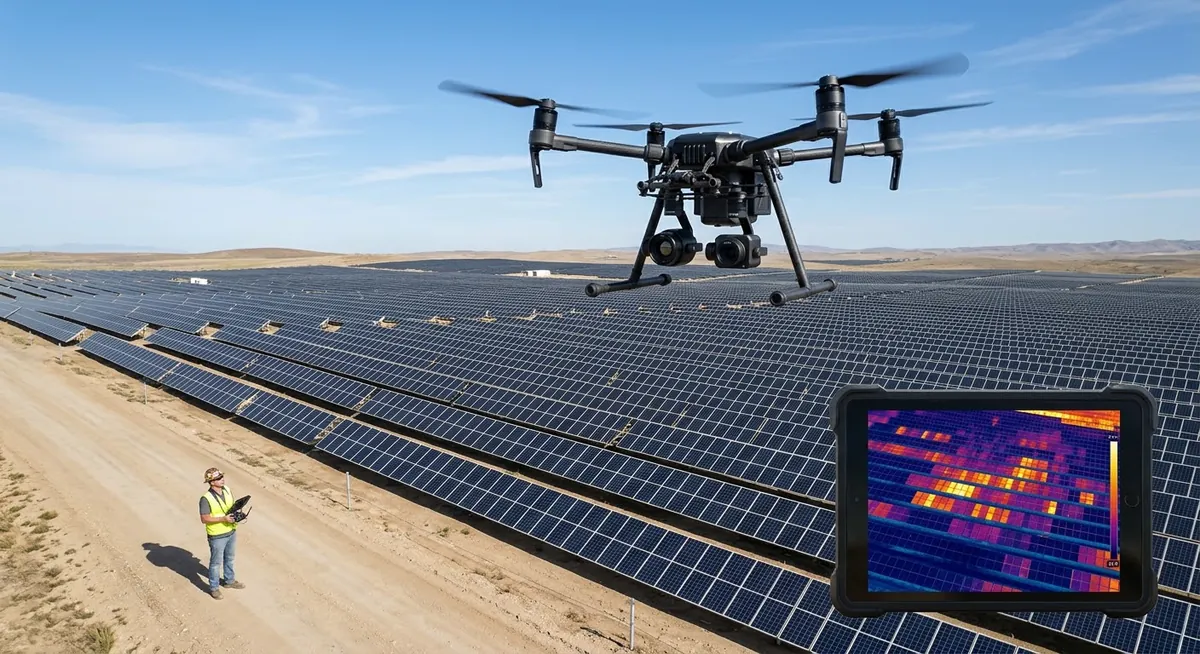

Drones & UAV
Lightweight payloads for aerial thermal mapping, inspection and search.

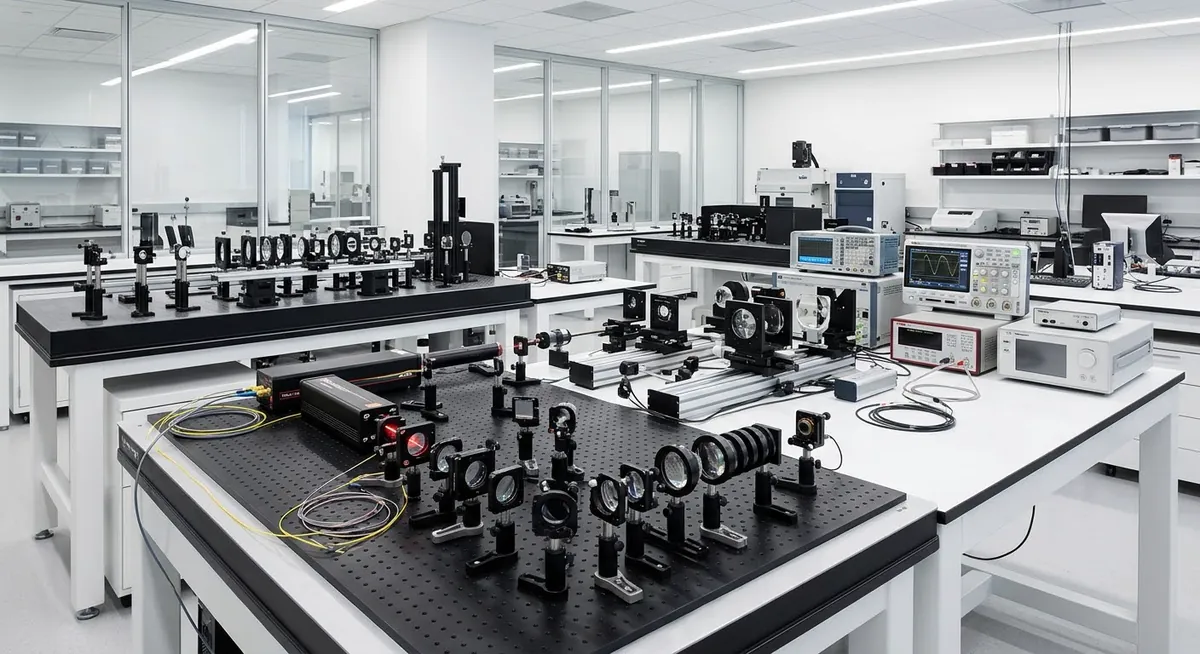

Scientific Research
Thermal data acquisition for laboratory and R&D imaging systems.

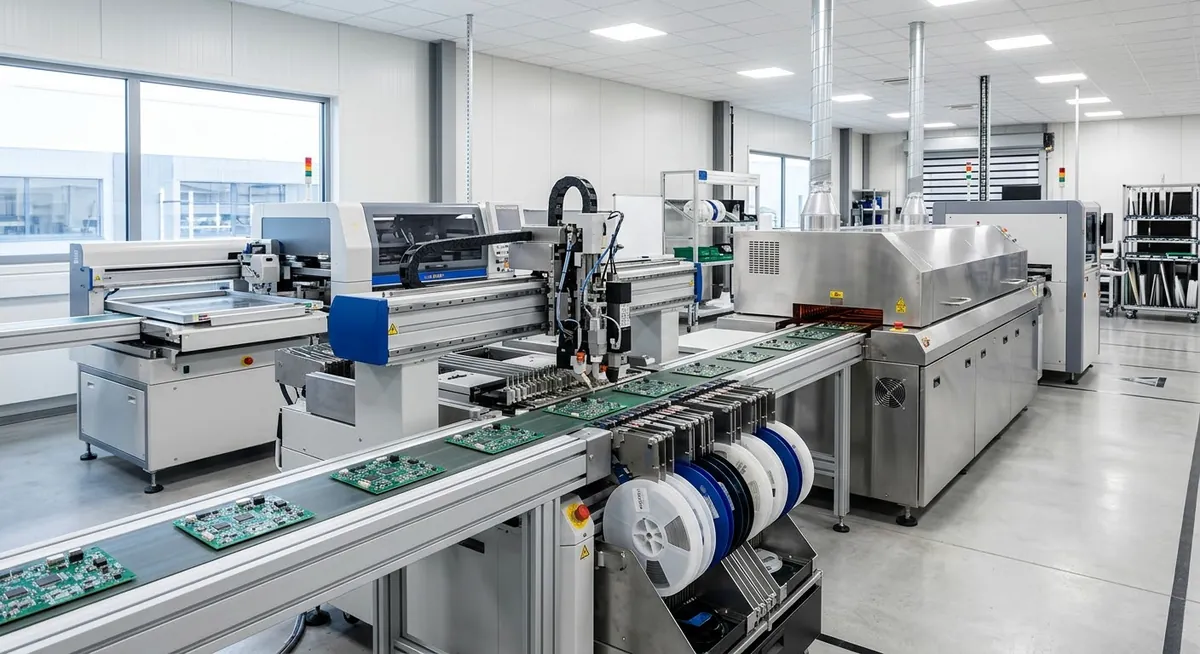

OEM Development
Custom integration with CVBS, USB or UART interfaces.
Why buyers choose us
Certifications
CE / RoHS and quality management for industrial and security buyers.
Factory backed
Direct production control, testing and consistent supply.
OEM / ODM support
Custom lens, cable and interface matching for your product.
Built into field-proven systems
Representative integration categories. Detailed case references are available under NDA.
Industrial OEM
Thermal inspection module integration for automated process monitoring.
Security & Surveillance
Passive thermal observation for perimeter and handheld systems.
UAV Thermal Payload
Lightweight airborne payloads for mapping, inspection and search.
From the blog
Ready to evaluate a thermal core?
Get a quotation, request samples or download the datasheet.
Contact Sales
